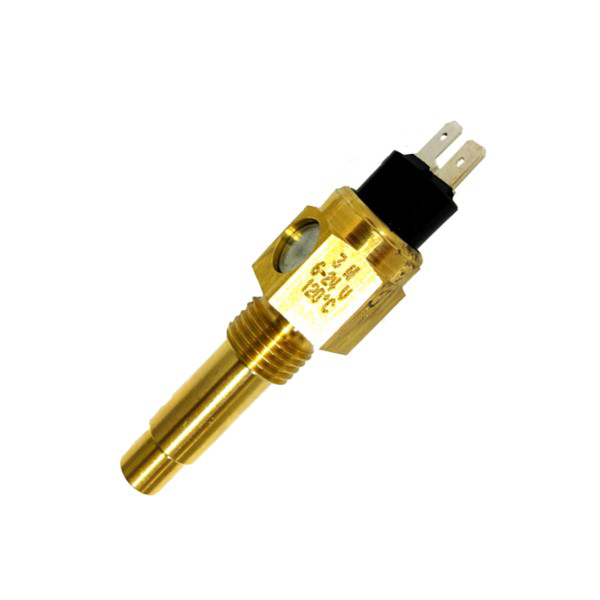

323-803-001-011D - Temperature Sender/Switch Coolant 5/8"X18UNF 40 - 120°C 95°C

       Product Specifications

• SKU : 323-803-001-011D
• Brand : VDO
• Product Portfolio : Switches & Sensors
• Product Family : Senders
• Product Group : Temperature Senders
• Product Type : Temprature Sender/Switch
• Type : Oil
• Thread: : M14 x 1.5
• Temperature : 50-150° C
• Switch Point : 130°C
• Switch Contact : N/O
• Minimum - Maximum operating temperature: : -40 °C to +180 °C
• Sender element length + thread (L): : 40 mm
• Sensor diameter: : 10.8 mm
• Torque: : 20 Nm
• Temperature medium: : Coolant - Water - Air - Engine oil - Transmission oil - Fuel
• Operating voltage: : 6 - 24 V DC
• Resistor range: : 322.8 - 18.6 Ohm
• Temperature sensor signal: : Single-Pole common ground
• Warning contact: : 130 °C ± 3 °C
• Warning contact switching capacity: : 1.2 - 3 Watt non-inductive
• Warning contact features: : Contact closes with rising temperature
• Temperature sender connector: : AMP Male 6.3 x 0.8 mm
• Warning contact connector: : AMP Male 4.8 x 0.8 mm
• VDO 2014 Vehicle Electronics Catalog: : Page 142 - 143
• Type of connection: : A
• VDO En Du Temperature senders Tables: : VDO table: 2
• Temperature 100 °C > Resistance: : 100 °C = 61.92 Ohm ± 5.49 Ohm
• Warranty : 12 Months Limited Warranty
