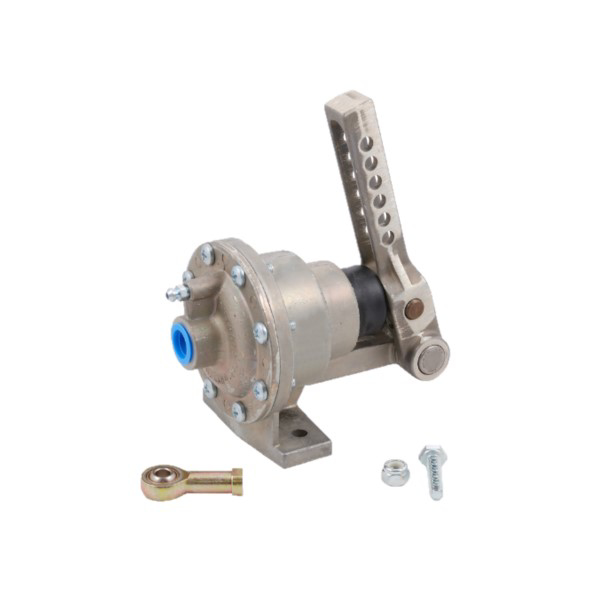

WM512C - Hydraulic Throttle Cylinder

       Product Specifications

• SKU : WM512C
• Brand : Williams Controls
• Product Portfolio : Pedals & Controls
• Product Family : Throttle Pedals & Controllers
• Port size: SAE 6 (9/16-18 UNF) straight thread with O-Ring
• For off-highway applications only
• Weight: 1 lb, 13 oz (0,8 kg)
• Maximum operating pressure: 300 PSI (2068 kPa)
• Operating temperature: -20°F to 200°F (-29°C to 93°C)
• A low-pressure cylinder which is connected to an engine’s fuel pump lever and remotely controlled by a three-way hydraulic controller.
• The WM-512 throttle control cylinder is a low-pressure cylinder which is connected to an engine’s fuel pump lever and remotely controlled by a three-way hydraulic controller. When the controller is released, the lever returns to the idle position. The WM-512 throttle control cylinder is designed for applications which do not require compliance with FMVSS-124.
• Warranty : 12 Months Limited Warranty
