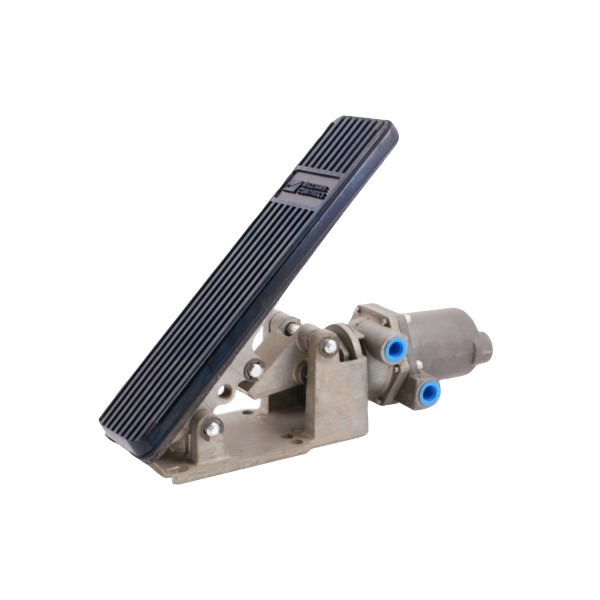

WM515C - Hydraulic Throttle Pedal

       Product Specifications

• SKU : WM515C
• Brand : Williams Controls
• Product Portfolio : Pedals & Controls
• Product Family : Throttle Pedals & Controllers
• Port size: SAE 6 (9/16-18 UNF) straight thread with O-Ring
• For off-highway applications only
• Weight: 4 lb, 15 oz (2,3 kg)
• Maximum operating pressure: 300 PSI (2068 kPa)
• Operating temperature: -20°F to 200°F (-29°C to 93°C
• Pedal operated by hydraulic controller is designed for systems using hydraulic fluid at pressures to 300 PSI and temperatures from -20 - 200 degrees F.
• The WM-515 three-way, pedal operated by hydraulic controller is designed for systems using hydraulic fluid at pressures to 300 PSI and temperatures from -20 - 200 degrees F. The WM-515 control valve is commonly used with the WM-512 series cylinders in non-FMVSS 124 throttle control applications. It is designed for surface mounting on equipment where space is limited beneath the operator’s compartment.
• Warranty : 12 Months Limited Warranty
